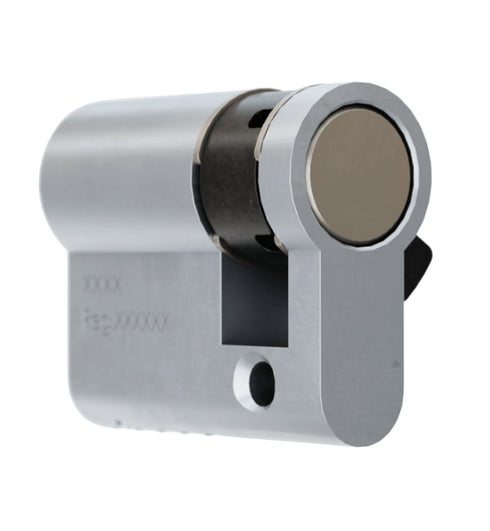

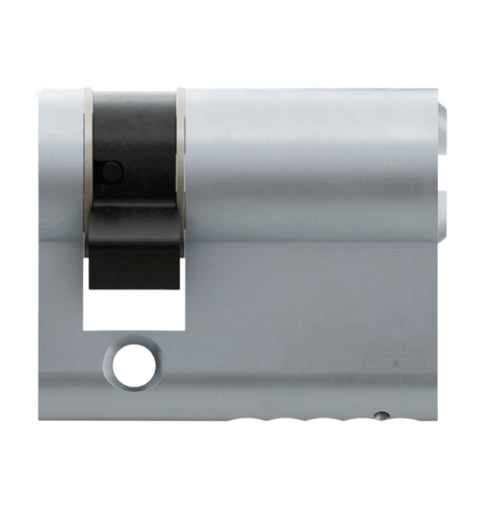

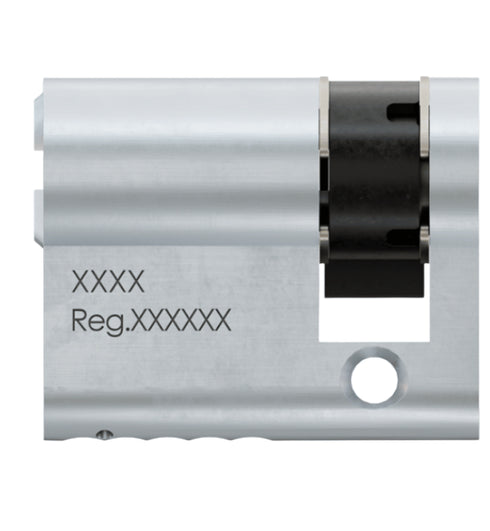

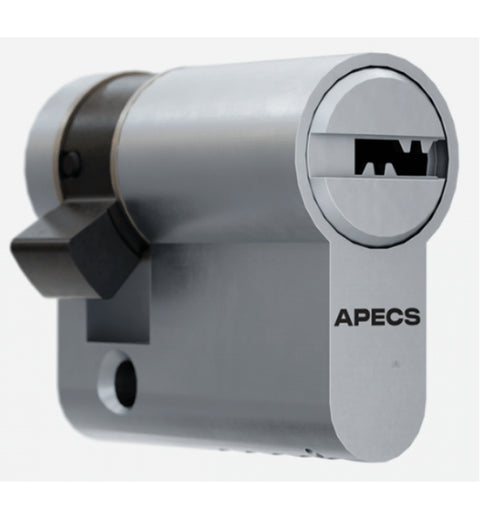

Half Euro Cylinder - BS1 3 Star Half Euro

The APECS AP Series Half Euro Cylinder is our specialized half euro cylinder that operates on the same key system as our BS1 3 Star Kitemark AP Series Euro Cylinder. This exceptional half euro cylinder offers comprehensive protection against drilling, picking, and bumping, ideal for applications requiring single-sided access.

What is a Half Euro Cylinder?

A half euro cylinder, also known as a single cylinder, provides key operation from one side only. This makes it perfect for doors that only need to be locked from the outside, such as storage rooms, utility doors, or situations where internal access does not require key operation. The APECS AP Half Euro brings BS1 3 Star security to these applications.

Advanced Security Features:

• Anti-Pick Protection: Advanced 4-pin anti-pick system prevents unauthorized picking attempts
• Anti-Bump Technology: Double locking mechanism with slider in combination with a unique shallow chamber provides superior bumping protection
• Anti-Drill Defense: 2 hardened pins in the body plus 5 on each side in the core protect against drilling attacks
• 9-Pin System: High-security 9-pin tumbler mechanism combined with slider technology
• Hybrid Key Profile: Advanced dimple and slider hybrid key design for enhanced security
• 1 Steel Driver Pin: Hardened steel pin for additional protection
• 180,000+ Key Differs: Massive key variation ensures maximum security and uniqueness

Technical Specifications:

• Material: Premium brass construction throughout
• Mechanism Type: Pin tumbler and slider hybrid system with 9 pins
• Configuration: Key-Key (half euro - single sided operation)
• Available Sizes: 10x30mm, 10x35mm, 10x40mm, 10x45mm, 10x50mm (Internal x External)
• Key Type: Dimple and slider hybrid key - compatible with AP Series key system
• Keys Supplied: 3 keys included with each cylinder
• Number of Differs: In excess of 180,000 unique key combinations
• Finish Options: Available in Brushed Brass and Brushed Satin Nickel
• Packaging: Secure cardboard packaging
• Warranty: Comprehensive 10-year manufacturer warranty

BS1 3 Star Kitemark AP Series System Integration:

A major advantage of the AP Half Euro Cylinder is its full compatibility with the APECS BS1 3 Star Kitemark AP Series Euro Cylinder range. This means you can operate multiple locks throughout your property on a single unified key system, including both full euro and half euro cylinders. This provides unparalleled convenience without compromising on the highest level of BS1 3 Star security.

Size Selection Guide:

The cylinder size is measured as Internal x External, where the internal measurement is fixed at 10mm (providing minimal internal projection), and the external measurement varies from 30mm to 50mm to accommodate different door thicknesses and lock backset requirements. Measure your door thickness and lock requirements carefully to select the appropriate size.

Why Choose the APECS AP Half Euro Cylinder?

This cylinder represents the pinnacle of half euro cylinder security technology. The combination of pin tumbler and slider hybrid mechanism, along with anti-pick, anti-bump, and anti-drill protections, creates a comprehensive defense against all common cylinder attack methods. With over 180,000 key differs available and compatibility with the AP Series key system, you get maximum security with maximum convenience.

Available Finishes:

Choose from two premium finish options to match your door hardware and aesthetic preferences. Brushed Brass offers a classic, elegant appearance that complements traditional architecture. Brushed Satin Nickel delivers a contemporary, modern aesthetic perfect for updated properties and contemporary design.

Applications: Storage rooms, utility doors, commercial properties, office buildings, single-access doors, exterior doors requiring one-sided key operation, rental properties, master key systems, keyed-alike applications, high-security installations requiring BS1 3 Star protection in half euro format, and any application requiring the highest level of single-sided cylinder security.
