HOPPE Arrone Concealed Bearing Hinges, AR8380, Stainless Steel
You Save: £3.02 (14%)
Hurry! Only 10 Left in Stock!
Fast Delivery 1-3 Business Days for Hardware. 4-5 Weeks Lead Time For Doors .
No Flatpacks. Save Time on Installation !
High Quality Products with 1 Year Warranty for Hardware ; 10 Years Warranty for Doors.

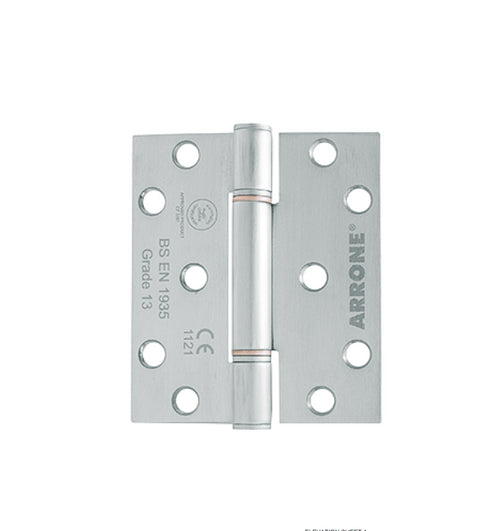

ARRONNE Phosphor Bronze Bearing Hinge
Available at UnikDoors, the ARRONNE Phosphor Bronze Bearing Hinge (AR8380) is a robust and high-performance solution designed for demanding door installations. Crafted from durable stainless steel and featuring phosphor bronze bearings, this hinge offers exceptional longevity and smooth operation, making it ideal for heavy wooden doors and fire-rated applications. Its comprehensive testing and certifications ensure reliability and safety.
Key Features:
- Premium Construction: Made from high-quality Grade 304 stainless steel with phosphor bronze washers for enhanced durability and smooth articulation.
- High Performance Grade: Achieves Grade 13 for superior strength and longevity, suitable for heavy-duty applications.
- Heavy Door Compatibility: Designed to support wooden doors weighing up to 120 kg, offering reliable performance for substantial door leaves.
- Fire Door Compliant: Extensively tested to BS EN 1634-1, suitable for 30, 60, 90, and 120-minute timber fire doors and 240-minute steel fire doors.
- Certified Quality: CE Marked (AC5027), UKCA Marked (UK-AC7676), and Certifire Approved (CF5197), ensuring compliance with rigorous safety and performance standards.

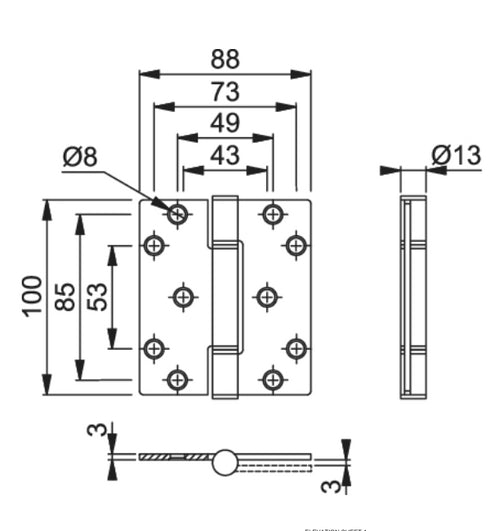

- Precise Dimensions & Finish: Features dimensions of 100x88x3 mm with square corners and a sleek Satin Stainless Steel (SSS) finish.
- Easy Installation: Equipped with 5 holes ANSI template drilled and countersunk, and supplied with 30 x 304 grade stainless steel positive countersunk wood screws for secure fixing to timber doors.
Technical Specifications:
- Material: Stainless Steel (Grade 304)
- Bearing: Phosphor Bronze Washer
- Hinge Grade: Grade 13
- Shape: Square
- Dimensions: 100x88x3 mm
- Drill: 5 holes ANSI template drilled, countersunk
- Door Weight Compatibility: Up to 120 kg
- Fixings: 30 x 304 grade stainless steel positive countersunk wood screws (for timber doors)
- Leaf Corner: Square Corners
- Finish: SSS Satin Stainless Steel
- Material Thickness: 3 mm
- Door Type: Wooden Door
-
Testing & Certification:
- BS EN 1935:2002 (Classification: 4 | 7 | 6 | 1* | 1 | 4 | 0 | 13)
- BS EN 1634-1 (Assessed for use on 30, 60, 90 and 120 minute timber fire doors and 240 minute on steel fire doors)
- CE Marked: AC5027
- UKCA Marked: UK-AC7676
- Certifire Approved: CF5197
- CE DOP: HUK0049
- UKCA DOP: HUK0049-UK
