Hoppe Arrone Door Closer AR3500– Overhead Surface Mount | Traffic White Finish | Item 87101074

£80.00

Hurry! Only 10 Left in Stock!

Real time 18 visitor right now

Fast Delivery 1-3 Business Days for Hardware. 4-5 Weeks Lead Time For Doors .

No Flatpacks. Save Time on Installation !

High Quality Products with 1 Year Warranty for Hardware ; 10 Years Warranty for Doors.


American Express
Apple Pay
Discover
Google Pay
Maestro
Mastercard
Shop Pay
Visa
PRODUCT INFORMATION
Technical Information
PRODUCT INFORMATION

Hoppe Arrone AR3500 Door Closer – Overhead Surface Mount | Traffic White Finish | Item 87101074



The Hoppe Arrone Door Closer AR3500 Item 87101074 is a premium overhead surface-mounted door closer designed for timber and steel fire-rated doors in commercial, public, and educational buildings. Engineered with adjustable power size EN 2 to 4, this unit supports backcheck, spring control, and smooth closing and latching operation for doors up to 1100 mm wide and 80 kg.

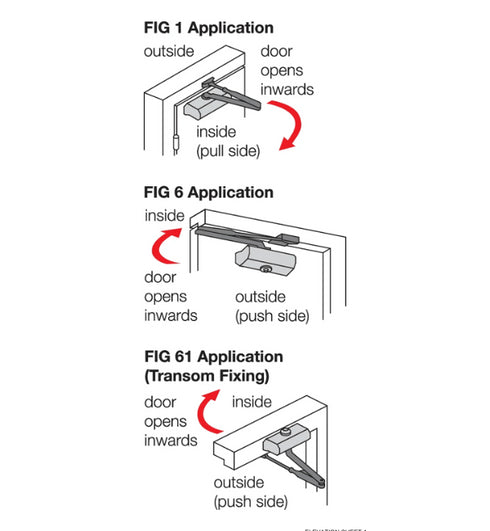

Crafted with a sleek RAL 9016 traffic white designer cover, the Hoppe Arrone Door Closer AR3500 Item 87101074 enhances both performance and aesthetic appeal. It supports versatile arm applications (Fig 1, 6, and 61), and has been tested to meet stringent BS EN 1154:1997 and BS EN 1634-1 fire safety standards. While it includes a delayed action feature, this must not be used on fire doors to remain compliant with CE and UKCA certifications.

Built for reliability and long-term durability, the Hoppe Arrone Door Closer AR3500 Item 87101074 is an ideal solution for high-traffic environments requiring a refined and functional door control solution.



Product Details

  • Power Size: EN 2 to 4 (adjustable)

  • Mechanism Type: Rack & pinion

  • Arm Application: Fig 1, Fig 6, Fig 61

  • Arm Type: Scissor arm, detachable joint, flat form, adjustable

  • Maximum Door Width: 1100 mm

  • Maximum Door Weight: 80 kg

  • Finish: RAL 9016 traffic white (diamond white)

  • Cover Type: Designer cover

  • Mechanism Functions: Backcheck, spring tension adjustment, closing & latching speed

  • Opening Angle: Max 180°

  • Fire Rating: 30/60/120 min timber; 240 min steel doors

  • Certifications: CE (AD0009), UKCA (UK-AD7695), Certifire CF294

  • Fixings: Timber door

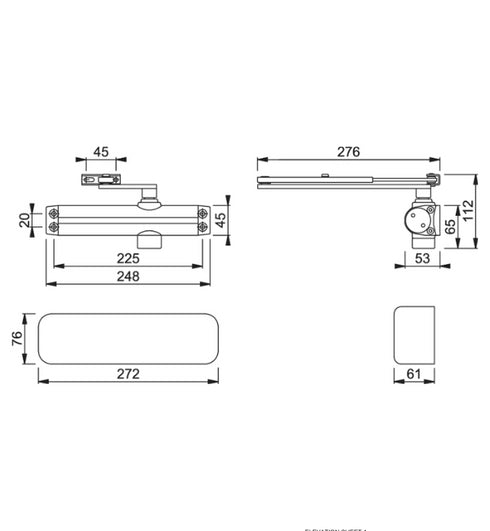

  • Dimensions: 248 x 45 x 53.5 mm; Fixing centres: 225 x 20 mm

  • Note: Delayed action function not certified for use on fire doors

Technical Information

German Engineering, British Manufacturing

Our products combine the precision of German engineering with the craftsmanship of British manufacturing, ensuring durability, performance, and a flawless finish.

Manufactured in-house at ourstate-of-the-art facilities in South Wales by skilled Unik employees.

Certified Quality Assurance

BS EN ISO 9001:2015 & 14001:2004 Certified, demonstrating our commitment to quality, sustainability, and customer satisfaction.

Rigorous jig testing before delivery-if it's not tested, it doesn't leave our facility.

Performance & Larger than life Designs

Panoramic glass panels up to 4m wide, offering expansive views and a striking centrepiece for any project.

Minimal sightlines with interlock profiles as slim as 20mm, creating an uninterrupted, seamless aesthetic.

Direct Manufacturer Pricing

Buy direct from Unik Doors, cutting out middlemen for high-quality, cost-effective solutions.

Premium materials, competitive pricing-innovative designs without the premium price tag.

Architectural & Functional Excellence

Products that blur the line between luxury aesthetics and high-security performance.

Fully customisable doors and windows, tailored to individual and architectural requirements.

Trusted Industry Partnerships

Partnered with Schüco and Cortizo, the leading manufacturers in panoramic range solutions.

Staying at the forefront of innovation, aesthetics, and performance with only the best suppliers.

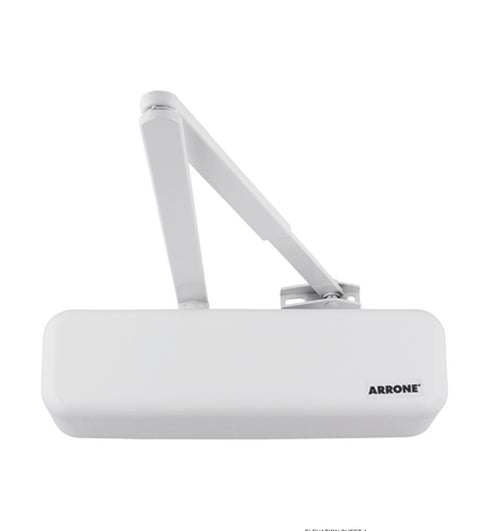

Hoppe Arrone AR3500 overhead door closer in traffic white finish
