PULL HINGE OPEN OUT – Fits on Smarts Visofold 1000 – PAS24 Compliant
You Save: £1.50 (6%)
Hurry! Only 5 Left in Stock!
Fast Delivery 1-3 Business Days for Hardware. 4-5 Weeks Lead Time For Doors .
No Flatpacks. Save Time on Installation !
High Quality Products with 1 Year Warranty for Hardware ; 10 Years Warranty for Doors.

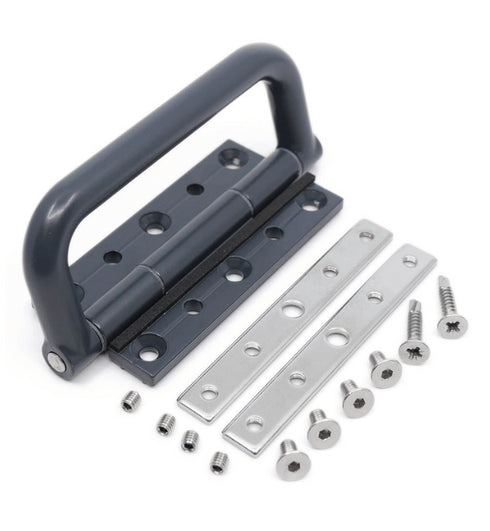

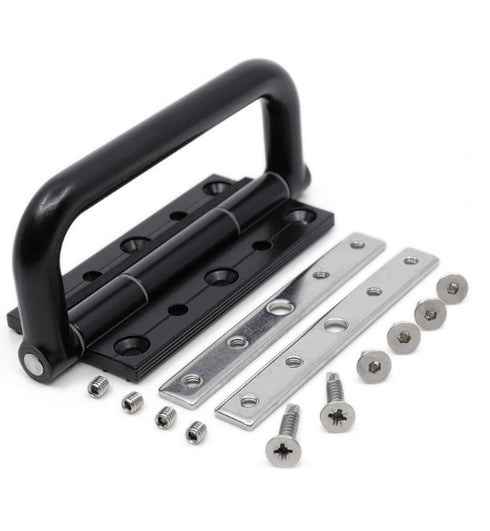

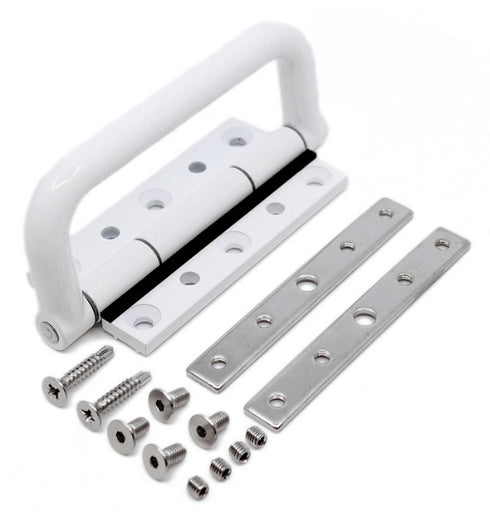

Available at UnikDoors, this high-quality PULL HINGE OPEN OUT (DBV1-12/OUT )is specifically designed as a premium alternative for the Smarts Visofold 1000 door system. Combining a hinge and pull handle in one slim, elegant design, this component has been rigorously security tested to PAS 24 and weather tested to BS 6379 parts 1 & 2. It has been successfully cycle tested on a bi-fold set at maximum weight for 10,000 open/close cycles, ensuring exceptional durability. With a hinge body made from extruded aluminum and stainless steel pins for strength, this hinge is suitable for door panels up to 120kg and 1200mm wide. It features a D-handle made from zinc die-cast and a sealing strip for improved weathering. With a 10-year manufacturer's warranty and available in three sophisticated finishes, this hinge is an ideal choice for a professional and long-lasting installation
KEY FEATURES
- Designed for Smarts Visofold 1000 door system
- Slim design
- Security tested to PAS 24 See Data sheets
- Weather tested to BS 6379 part 1 & 2 See Data Sheets
- Successfully cycle tested bi-fold set at maximum weight. 10,000 times open/close
- Quality manufactured to BS EN ISO 9001:2019
- All stainless steel clamp plates and fittings supplied
- Suitable for door panels up to 120kg* and 1200mm wide*
- Hinge body made from extruded aluminium. Stainless steel pins for strength and durability. Bushes have high load qualities and are self-lubricating
- Incorporates sealing strip between hinge leaves for improved weathering
- D handle made from Zinc Die cast. Rounded shape and circumference matches the hinge knuckle size
- Polyester powder coating (PPC)
- 10-year manufacturer’s warranty
- Available in: Black Matt, White Gloss, Grey Matt
- Alternative to Smarts part codes ACDV234 OUT & ACDV274 IN
* Please refer to Smarts fabricator manual for guidance on maximum panel size and weights
