Schüco 269191 Bifold Shootbolt Hand Lever – Black, ASS FD 75 Bifold Door (2022 Onwards)

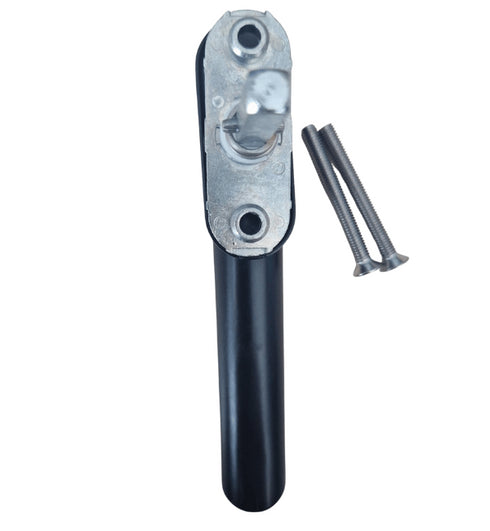

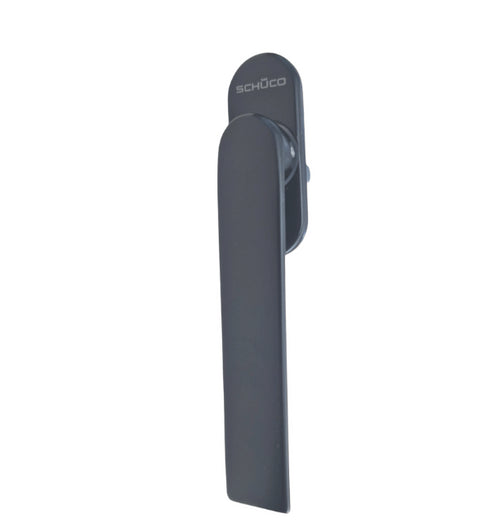

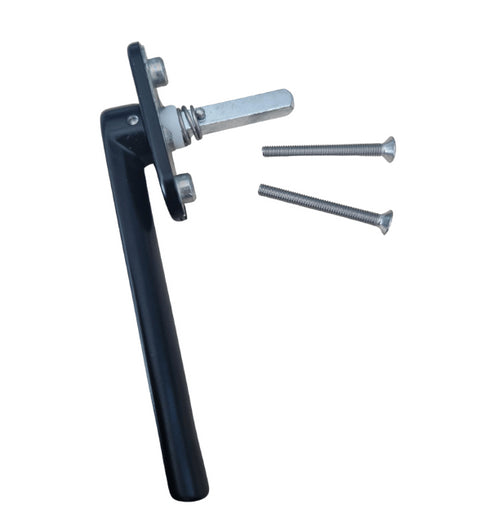

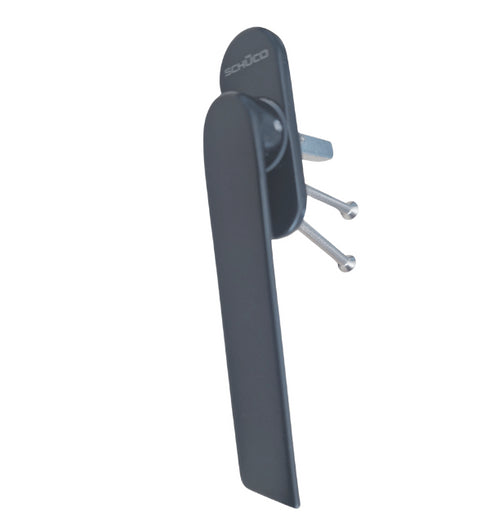

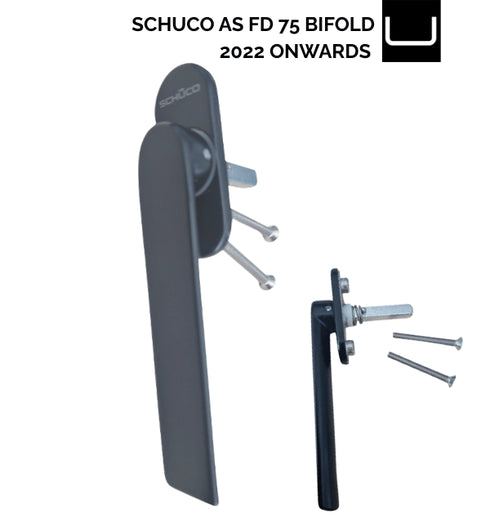

The Schüco 269191 is a genuine Schüco bifold shootbolt hand lever designed specifically for the Schüco ASS FD 75 bifold door system from 2022 onwards. Available through UnikDoors, an approved Schüco partner, this black hand lever operates the shootbolt mechanism on the internal side of the ASS FD 75 bifold door, rotating through 180° for non-handed operation — making it suitable for any leaf position without requiring a separate left or right hand version. Unlike alternative or aftermarket lever handles, the 269191 is a 100% genuine Schüco component, guaranteeing a precise like-for-like fit for the ASS FD 75 system with no modification required. The 269191 is the black finish version of the 269190 aluminium silver lever and must not be confused with the earlier 240885 or 247886 levers designed for the older ASS 70FD system.

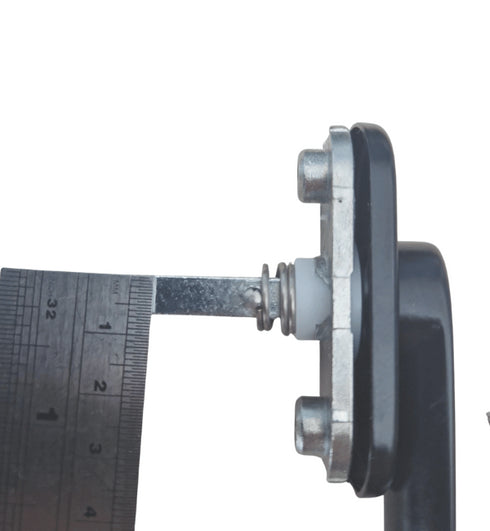

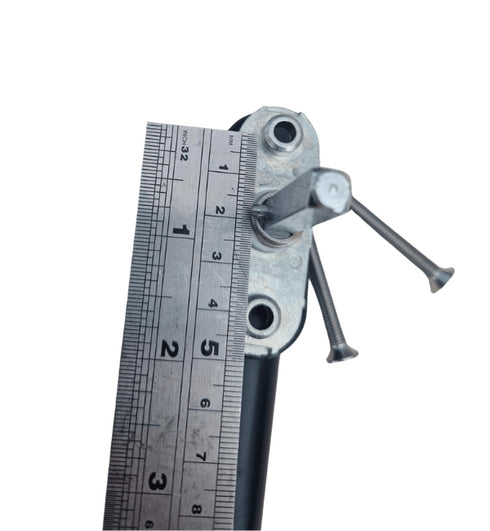

The 269191 lever is fixed with 43mm screw centres (screws included) and features a 7mm spindle bar 35mm in length, designed for use with the Schüco folding shootbolt 269260. The 7mm spindle is specific to the ASS FD 75 system — the older ASS 70FD levers use an 8mm spindle, so confirming your door system before ordering is essential. As a genuine Schüco component supplied by an approved Schüco partner, UnikDoors guarantees the 269191 is a precise like-for-like fit for ASS FD 75 bifold door systems from 2023 onwards. Note: this hand lever is designed exclusively for internal use on bifold door leaves and is not intended for use as a pull handle.
- Schüco 269191 bifold shootbolt hand lever for ASS FD 75 bifold doors (2023 onwards).
- 100% genuine Schüco part — not an alternative or aftermarket replacement.
- Black finish version of the 269190 aluminium silver lever.
- Supplied by UnikDoors, an approved Schüco partner.
- Non-handed — lever rotates through 180°, suitable for any leaf position.
- Designed for internal use only; operates the Schüco folding shootbolt 269260.
- Spindle: 7mm diameter, 35mm length — specific to ASS FD 75 system.
- Screw fixing centres: 43mm (screws included).
- Finish: black.
- Not suitable for use as a pull handle.
- Not compatible with ASS 70FD systems — those require the 240885 (silver) or 240888 (white) with 8mm spindle.
Frequently Asked Questions
Is the Schüco 269191 a genuine Schüco part?
Yes. The 269191 supplied by UnikDoors is a 100% genuine Schüco component, not an alternative or aftermarket replacement. UnikDoors is an approved Schüco partner supplying genuine Schüco hardware directly.
Which Schüco bifold door system does the 269191 fit?
The 269191 is designed specifically for the Schüco ASS FD 75 bifold door system from 2023 onwards. It is not compatible with the older Schüco ASS 70FD system — those doors require the 240885 (silver) or 240888 (white).
What spindle size does the Schüco 269191 use?
The 269191 uses a 7mm diameter spindle bar, 35mm in length. This is specific to the ASS FD 75 system. If your door was manufactured before 2023 and uses an 8mm spindle, you will need the 240885 (silver) or 240888 (white) for the older ASS 70FD system instead.
What is the difference between the Schüco 269191 and the 269190?
The 269191 and 269190 are identical in specification — same spindle size, screw centres, and compatibility with the ASS FD 75 system from 2023 onwards. The only difference is finish: the 269191 is black and the 269190 is aluminium silver EV1.
Is the Schüco 269191 handed — do I need a left or right hand version?
No. The 269191 is non-handed — the lever rotates through 180° and is suitable for any leaf position within the ASS FD 75 bifold system without needing a separate left or right hand version.
Can the Schüco 269191 be used as a pull handle?
No. The 269191 is designed exclusively for internal use on bifold door leaves to operate the Schüco folding shootbolt 269260 mechanism. It is not suitable for use as a pull handle.
What screw centres does the Schüco 269191 require?
The 269191 uses 43mm screw fixing centres. Screws are included in the pack.
How do I know if my Schüco bifold door needs the 269191 or the older 240885 lever?
If your Schüco bifold door was manufactured from 2023 onwards and is an ASS FD 75 system, you need the 269191 (black) or 269190 (silver). If your door was manufactured before 2023 and is an ASS 70FD system, you need the 240885 (silver) or 240888 (white). If you are unsure, check the profile markings on your door frame or contact UnikDoors for guidance.
